Great design

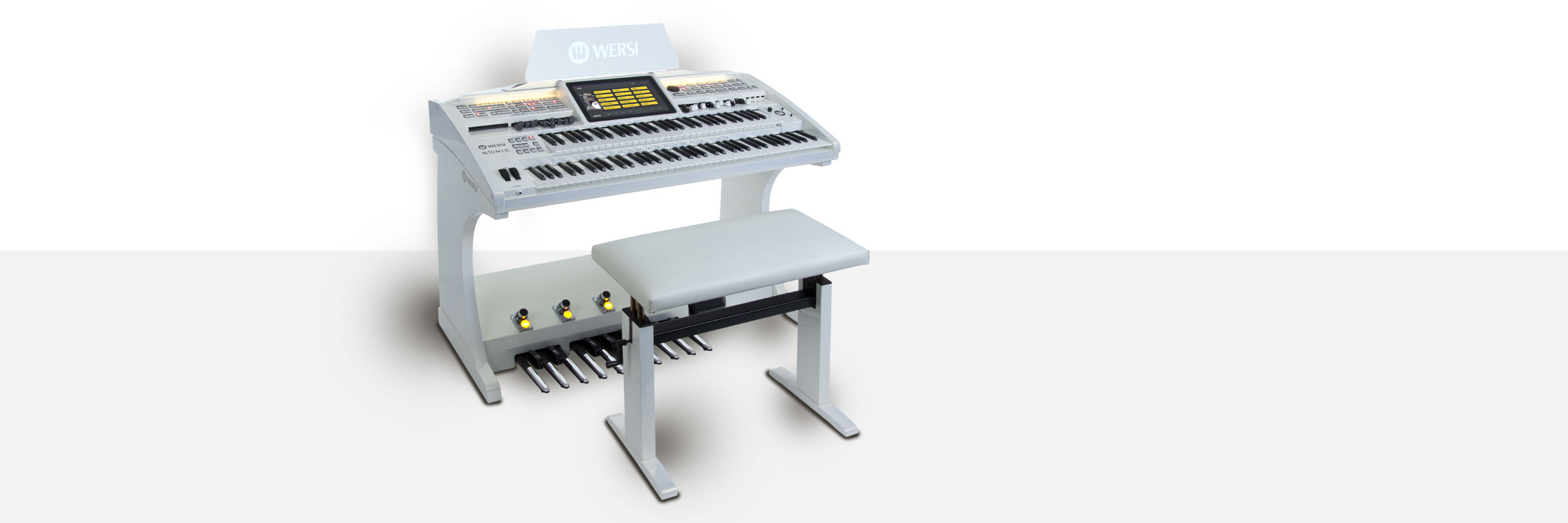

As we all know, the eye listens, and that’s why we’ve packed the OAX600 in a gorgeous case, the outer finish of which you can even choose for yourself, whether it’s mother-of-pearl white, elegant high-gloss black or the exclusive brown metallic. Or we can manufacture your dream organ in your individual desired colour – just tell us how you want it to look, your new OAX600!



Unlimited musicality

No matter whether you want to play classical music, the great church organ, light music or the latest chart breakers on your organ: Your OAX600 will do everything and let your playing sound at the highest level. With two large manuals (upper manual 61 keys, lower manual 76 keys, both velocity-sensitive and aftertouch playable), a 17-key velocity-sensitive pedal and the intuitive control panel with the large central 13.3″ touch display, you can direct your orchestra, big band, jazz combo or rock group in real time while playing. Enjoy a musical experience that only an organ can offer – with the SONIC OAX600 and OAX600LS in highest perfection!



OAX600 or OAX600LS

The OAX600LS scores in the integrated loudspeaker. For perfect sound system, 2 x 100 watts in the lower section provide the bass and mid-range sound and 2 x 60 watts in the upper section provide the treble. For the OAX600 without integrated loudspeakers, we recommend either the VOCALIS sound emitters specially developed for the OAX system or the TS9000. Both sound emitters are available in the matching High Gloss White and High Gloss Black finishes.

17-key pedal and pistons

Tweeter of the LS version

Sills with two switches

All features of the OAX600 and OAX600LS at a glance

HIGHLIGHTS

An idea with a future:
Full software control of all functions and timbres, constant further development of the entire system, updates possible via download – the times when every change required complex and expensive hardware modifications are now a thing of the past.

Two versions
The organ is available without built-in speakers as OAX600 and as OAX600LS with built-in speakers. For OAX600 without built-in loudspeakers we recommend the VOCALIS sound emitters specially adapted to the OAX system.

Further highlights:

  • Complete OAX operating system
  • High-quality, lightly weighted FATAR keyboards, upper manual with lower manual 61 keys and lower manual with 76 keys, each with velocity and Ch. Aftertouch
  • 17-key pedal with touch dynamics
  • 5 pistons and 2 foot switches on the sill, additional piano pedal
  • 13.2″ Color Multitouch Display
  • 9-fold upper manual drawbar and 7-fold lower manual drawbar
  • 12-fold drawbar set for volume
  • 6 effect sound buttons
  • Including matching bench seat
  • Colours: High gloss black, mother of pearl white, brown metallic, others on request
  • LS version only: Sound radiation with 2 x 60 Watt for the treble in the upper part and 2 x 100 Watt for the bass and midrange in the lower part
COLORS

Sounds:
2000 factory sounds and 57 drum sets for all musical styles

Church organ:
Historical church organ built by the master organ builder Gottfried Silbermann (1683-1753).

Sound generation:
Sampling, wavetable synthesis, FM synthesis, analog synthesis

Polyphony:
Theoretically unlimited, only limited by CPU power

Sound controls:
Six Easy-Sound-Controls per sound-> Equalizer, Delay, Sample Start Point, Attack, Release, Vibrato, Filter and much more

Drawbar:
Wersi OAX7 and VB3 organ software simulations of the highest quality, firmly integrated, controllable via real drawbars

Effects:
Four send effects with reverb 1, reverb 2, shorus and delay; further effects individually programmed in the sounds.

EASY mode:
Three sounds each on the upper and lower manual and one pedal sounds

PROFI mode:
Up to 16 sounds can be distributed among the manuals. Maximum of 12 voices each for the upper or lower manual.

Effect sounds:
Six effect sound buttons to play effects such as crash cymbal or vocal effects.

TOTAL PRESETS

Music Archive:
The Music Archive is a list of Total Presets, in which the right sounds and style with the right tempo are stored for a specific song. The Music Archive is divided into the sections WORLD with 600 titles and GERMAN with 300 titles. In the OWN section you can add your own favourite titles to the Music Archiv.

Factory Total Presets:
The permanently stored factory total presets show the sonic possibilities

Own total presets:
5000 own Total Presets can be stored

Playing areas/split points:
For each sound an individual playing area can be assigned to the manuals – this way complex sound worlds can be composed

Accompaniment:
One Style, MIDI sequence or MultiMedia file each can be saved in the Total Preset with individual settings

Effects:
Individual settings for the four send effects

Others:
Foot switch assignments, effect sound assignments, notes, drawbar settings, tempo, transpose

ACCOMPANIMENT

Style player:
370 factory styles, 150 of them with Live Realdrums

STS presets:
Four STS presets are stored for each of the 370 Factory Styles. Select a style and play directly with the STS presets to create the right sounds

Harmony recognition:
One-Finger-WERSI, Easy Mode 1 and 2, Chord-Mode, Chord-Mode with Bass, Interval-Mode, Organist-Mode, Pedal-Mode, Piano-Mode

Convert Styles:
Your OAX instrument directly loads the older styles of the OAS series, styles of other manufacturers can be converted with paid extensions.

MIDI player:
Plays General MIDI sequences; volume levels of the 16 channels can be stored in Total Presets

Multimedia player:
Updated Multimedia Player plays all common audio formats

ACC database:
Style/MIDI/Mp3/Wave database with management function of up to 5000 own files

Audio recording:
With the audio recording you can directly record your performance and save it in wave format

CONTROLLED

Display:
13.3″ Color Multitouch Display in 16:9 cinema format (resolution 1366 x 768)

Manuals:
High-quality, lightly weighted FATAR keyboards, upper manual with lower manual 61 keys and lower manual with 76 keys, each with touch dynamics and ch. aftertouch

Manual dynamics:
Freely programmable dynamic curves, individual assignment to all manual tones possible

Bass pedal:
17-key pedal with touch dynamics

Wheels:
Pitch Bend and Modulation Wheel

Foot switch:
5 pistons and 2 footswitches on swell pedal, additional piano pedal. All freely assignable and individually storable per Total Preset

Swell pedal:
Swell curve per manual sound and accompagnement freely programmable

Control panels:
Clearly arranged control panel with high-quality push buttons

Organ drawbars:
9-way upper manual drawbar and 7-way lower manual drawbar

Functional drawbar:
Freely configurable drawbar “CC” for controlling special functions, organ drawbar can also be used for data input

Display languages:
German, English, French and Dutch

VST-HOST

VST 3.0 Host:
Integrated

Total number of plugins:
with up to 16 VST Instruments and 16 VST Effects (partly preset with factory plug-ins)

Connections:
Signal paths can be routed in the VST Host as required

VST presets:
Several VST configurations can be stored

DIGITAL INTERMEDIATE

Input mixer:
Separate sections for the manuals and accompaniment sound, drums and RealDrums, each with its own equalizer. The Line-In and Wave inputs for playing audio files each have their own equalizer, send and insert effects. The microphone input is equipped with two send effects, an insert effect and a talk function.

Output mixer:
With separate volume and EQ settings for Line Out 1, 2 and headphones

Presets:
Separate presets can be stored for the input and output mixer.

MAIN ELECTRONICS

Central electronics:
Modern motherboard with i7 processor

RAM memory:
16 GB RAM (of which 8 GB can be used for your own samples), optionally up to a maximum of 32 GB RAM

Hard disk space:
Super fast M.2 hard disk with 250 GigaByte guarantees shortest loading times

Other storage media:
DVD or optionally Blu-ray

Operating system:
Windows 10 64 bit

CONNECTIONS

USB:
4 x USB 2.0 on the front, further USB 3.0 on the back

Headphones:
Yes

Microphones:
1 x High End microphone preamplifier incl. phantom power (XLR/jack combo socket)

Video:
HDMI Video Output

Audio inputs:
1 x Line-IN stereo right/left (XLR/jack combo jack)

Audio outputs:
2 x Line-OUT Stereo right/left (jack)

MIDI:
2 x MIDI IN / OUT / THRU

MIDI To USB:
MIDI over USB function for direct connection to PC and Mac

CASE

Paint:
Available in high quality lacquering in the following colours
:- Black Metallic-
White High gloss –
Brown Metallic-
other colours on request

Measurements:
Width x height x depth: 1230 x 980 x 620 mm

Weight:
80 kg incl. organ bench

Before buying, ask about the scope of the current equipment.
